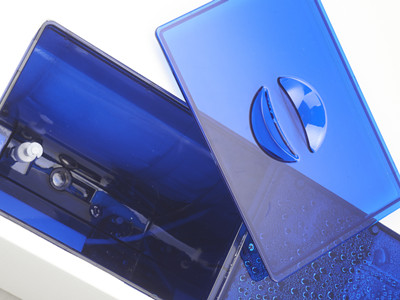

22(23)Liter Autoclave/Steam Sterilizer

The Classic Autoclave

The Classic Autoclave
22(23)Liter Autoclave/Steam Sterilizer
22(23)Liter Autoclave/Steam Sterilizer
  • 22(23)Liter Autoclave/Steam Sterilizer
  • 22(23)Liter Autoclave/Steam Sterilizer
  • 22(23)Liter Autoclave/Steam Sterilizer
Benchtop Autoclave/Steam Sterilizer Code:LFSS23BA
Category:Class B
  • Parameters
  • Function
  • Service
  • FAQ
Model LFSS23BA
Description Small Autoclave
Class B
Certification ISO 13485
Standard BS EN 13060:2004 + A2:2010
Plug 3 hole plug
Wattage 1.7 KW
Sterilization temperature 121, 134
Product size 70 X 44.5 X 39CM
Diameter of chamber 25 CM
Depth of chamber 45 CM
Volumn of chamber 22 L
Material of chamber Stainless steel 304
Min size of table for installation 48 X 32 CM
Screen type LED
Screen size 2.5 x 2cm, 3.8x 2cm
Language available English, Chinese
Lock system of door Mechanic + electrical lockers(optional)
Output Printer (optional)



Automatic Sterilization
5 sterilization program
B&D / Helix / Vacuum testing program
Dry time adjustable: 1-60 min
Buil-in printer (optional)
High quality bacteria filter


Big water tank allows 7-8 sterilzation programs



Program

121℃
Solid

121℃
Universal

134℃
Solid

134℃
Universal

Vacuum Times

1

3

1

3

Temp (℃)

121

121

134

134

Pressure(KPA)

110

110

210

210

Time(Min.)

20

20

4

4



Program

Cotton

BD/Helix
Test

Vacuum
Test



Vacuum Times

3

3

3



Temp (℃)

134

134

/



Pressure(KPA)

210

210

-80



Time(Min.)

4

3.5

15



Warranty:
Two-years warranty for whole machine
Lifetime warranty for chamber
Lifetime maintenance

Standard packing
Autoclave
Power cable
Water drain pipe
Tray
Tray holder
Handle for tray holder
Fuse
Instruction manual

The working condition of the autoclave:
*         Relative humidity: ≤80%
*         Atmospheric pressure: >70kPa;
*         Voltage:230VAC, 50Hz, 2500VA
*         The highest working pressure:  0.21~0.23MPa
*         The highest working temperature: 134~137℃

The requirements of transportation and storage:
*          Environmental temperature range: 5~40℃
*          Relative humidity: ≤80%
*          No corroding gases

Warning:
*          Please use a 3-hole socket, and ensure the socket has been connected well with the ground. Do not put the autoclave on a place that the power are difficult to be cut off.
*          Do not use power with different voltage with which stated in this manual.
*          Do not touch the plug or socket with wet hands.
*          Do not pull, change, over-bend or twist the wires, and do not put heavy things on the wires.
*          Do not put the autoclave on an unstable table.
*          Do not block the door of autoclave, and cover the ventilation holes and radiation holes.
*          Do not put anything on the top of autoclave.
*          If you find any abnormal smell or sound during operation, please cut off the power immediately and contact your local distributor or us.

1. Application fields:

Dental Clinics, Veterinary (Pet Vet), Tattoo Shop, Nail(beauty) Salon, Laboratory,and so on.

1. Application fields:

Dental Clinics, Veterinary (Pet Vet), Tattoo Shap, Nail(beauty) Salon, Laboratory,and so on.
