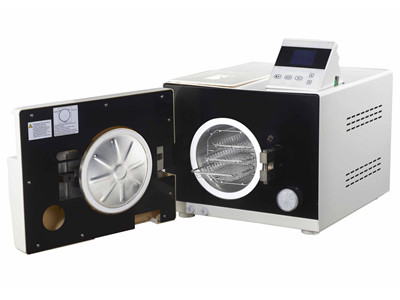

8Liter Autoclave/Steam Sterilizer

Benchtop Autoclave/Steam Sterilizer Code:LFSS08AC
Category:Class B

Model	LFSS08AC
Description	Small Autoclave
Class	B
Certification	ISO 13485
Standard	BS EN 13060:2004 + A2:2010
Frequency	50Hz
Plug	3 hole plug
Wattage	2.4 KW
Sterilization temperature	105 - 134℃
Max working pressure	0.21-0.23MPA
Life span	5 years
Diameter of chamber	17 CM
Depth of chamber	32 CM
Volume of chamber	8 L
Material of chamber	Stainless steel 304
Colors available	White
Screen type	LCD
Screen size	6 X 4.25 cm
Language available	English, Italian, German,Chinese
Lock system of door	Mechanic + electrical lockers
User password	Yes
Output	Thermo printer & USB
Net weight	35 kgs
Gross weight / carton	42 kgs
Product size	56 X 44 X 36cm
Package size	65 X 45 X 42cm
Min size of table for installation	54 x 41.5 cm

Fast Sterilization
Fully Automatic
8 Preset sterilization programs
Ster. Temp.: 105-134℃
Ster. Time: 4-60 min
Dry time: 1-25min
Vacuum Times: 1-10 times
B&D / Helix / Vacuum testing program
Cleaning Program
Printer & USB Output
Big Stainless Steel Water Tanks
High quality bacteria filter

User Password

Program	121℃ Solid	121℃ Hollow	121℃ Porous	121℃ Solid	121℃ Hollow	121℃ Porous
Vacuum Times	1	3	3	1	3	3
Temp (℃)	121	121	121	134	134	134
Pressure(KPA)	110	110	110	210	210	210
Time(Min.)	20	20	20	4	4	4

Program	Cotton	Prion	User defined	BD/Helix Test	Vacuum Test	Clean
Vacuum Times	3	3	User defined	3	1	3
Temp (℃)	134	134	User defined	134	/	105
Pressure(KPA)	210	210	User defined	210	-80	20
Time(Min.)	4	19	User defined	3.5	15	5

Warranty:

Two-years warranty for whole machine

Lifetime warranty for chamber

Lifetime maintenance

Standard packing

Autoclave

Power cable

Water drain pipe

Tray

Tray holder

Handle for tray holder

Fuse

Instruction manual

The working condition of the autoclave:

* Relative humidity: ≤80%

* Atmospheric pressure: >70kPa;

* Voltage:230VAC, 50Hz, 2500VA

* The highest working pressure: 0.21～0.23MPa

* The highest working temperature: 134～137℃

The requirements of transportation and storage:

* Environmental temperature range: 5~40℃

* Relative humidity: ≤80%

* No corroding gases

Warning:

* Please use a 3-hole socket, and ensure the socket has been connected well with the ground. Do not put the autoclave on a place that the power are difficult to be cut off.

* Do not use power with different voltage with which stated in this manual.

* Do not touch the plug or socket with wet hands.

* Do not pull, change, over-bend or twist the wires, and do not put heavy things on the wires.

* Do not put the autoclave on an unstable table.

* Do not block the door of autoclave, and cover the ventilation holes and radiation holes.

* Do not put anything on the top of autoclave.

* If you find any abnormal smell or sound during operation, please cut off the power immediately and contact your local distributor or us.

1. Application fields:

Dental Clinics, Veterinary (Pet Vet), Tattoo Shap, Nail(beauty) Salon, Laboratory,and so on.

1. Application fields:

Dental Clinics, Veterinary (Pet Vet), Tattoo Shap, Nail(beauty) Salon, Laboratory,and so on.
