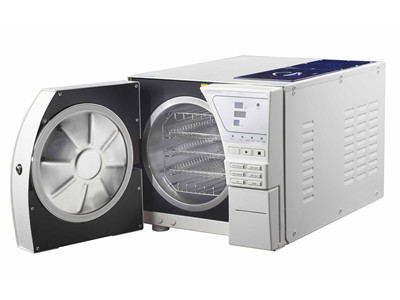

Benchtop Autoclave/Steam Sterilizer Code:LF-12L
Category:Class B
  • Parameters
  • Function
  • Service
  • FAQ
Model LF-12L
Description Small Autoclave
Class B
Certification CE 1023, ISO 13485
Standard BS EN 13060:2004 + A2:2010
Plug 3 hole plug
Wattage 1.7 KW
Sterilization temperature 121, 134
Product size 66 X 44.5 X 39CM
Diameter of chamber 20 CM
Depth of chamber 36 CM
Volumn of chamber 12 L
Material of chamber Stainless steel 304
Min size of table for installation 46 X 32 CM
Screen type LED
Screen size 2.5 x 2cm, 3.8x 2cm
Language available English, Chinese
Lock system of door Mechanic + electrical lockers(optional)
Output Printer (Optional)

Automatic Sterilization
5 sterilization program
B&D / Helix / Vacuum testing program
Dry time adjustable: 1-60 min
Buil-in printer (optional)
High quality bacteria filter


Big water tank allows 7-8 sterilzation programs



Program

121℃
Solid

121℃
Universal

134℃
Solid

134℃
Universal

Vacuum Times

1

3

1

3

Temp (℃)

121

121

134

134

Pressure(KPA)

110

110

210

210

Time(Min.)

20

20

4

4



Program

Cotton

BD/Helix
Test

Vacuum
Test



Vacuum Times

3

3

3



Temp (℃)

134

134

/



Pressure(KPA)

210

210

-80



Time(Min.)

4

3.5

15



Warranty:
Two-years warranty for whole machine
Lifetime warranty for chamber
Lifetime maintenance

Standard packing Q'ty (PCS)
Autoclave 1
Power cable 1
Water drain pipe 1
Tray 3
Tray holder 1
Handle for tray holder 1
Fuse 2

Instruction manual 1




The working condition of the autoclave:
*         Relative humidity: ≤80%
*         Atmospheric pressure: >70kPa;
*         Voltage:230VAC, 50Hz, 2500VA
*         The highest working pressure:  0.21~0.23MPa
*         The highest working temperature: 134~137℃

The requirements of transportation and storage:
*          Environmental temperature range: 5~40℃
*          Relative humidity: ≤80%
*          No corroding gases

Warning:
*          Please use a 3-hole socket, and ensure the socket has been connected well with the ground. Do not put the autoclave on a place that the power are difficult to be cut off.
*          Do not use power with different voltage with which stated in this manual.
*          Do not touch the plug or socket with wet hands.
*          Do not pull, change, over-bend or twist the wires, and do not put heavy things on the wires.
*          Do not put the autoclave on an unstable table.
*          Do not block the door of autoclave, and cover the ventilation holes and radiation holes.
*          Do not put anything on the top of autoclave.
*          If you find any abnormal smell or sound during operation, please cut off the power immediately and contact your local distributor or us.

1. Application fields:

Dental Clinics, Veterinary (Pet Vet), Tattoo Shap, Nail(beauty) Salon, Laboratory,and so on.

1. Application fields:

Dental Clinics, Veterinary (Pet Vet), Tattoo Shap, Nail(beauty) Salon, Laboratory,and so on.
